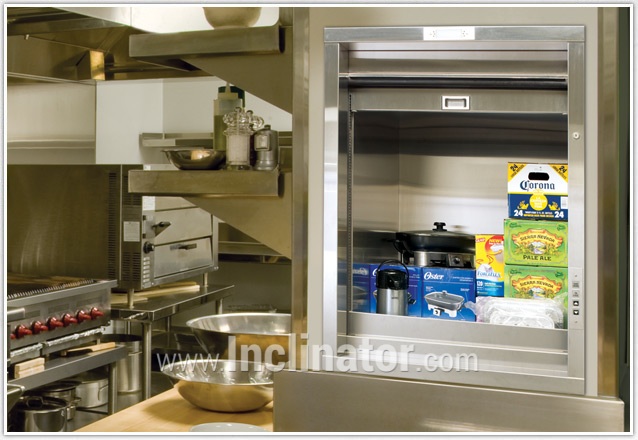

Inclinator® Dumbwaiter: Reduce the risk of back strain, aching muscles and even accidents.

  • Custom sizes up to 36″ x 36″ x 48″
  • 200, 300 and 500 lb. capacity models
  • Can be installed at counter or floor level
  • Travel up to 27′ on 200 lb. model
  • Travel up to 47′ on 300 and 500 lb. models
  • Automatic controls from any floor
  • Can accommodate openings on 1, 2 or 3 sides
  • Up to 6 stops
  • Hoistway door options include slide-up, bi-parting and swing
    (machine access door is always swing)
  • Car gate options include bi-parting, slide-up and collapsible where allowed by code
  • Painted steel or optional stainless steel
  • 220V electrical with flexible power unit location
  • Rolled steel rail mounted to 2″ x 12″ plank
  • Energy-efficient cable drum drive
  • Two Type A safety devices
  • Meets all code requirements for safety
  • Fire-rated door options available
  • Knock-down construction standard
  • 2-year warranty

Door Options

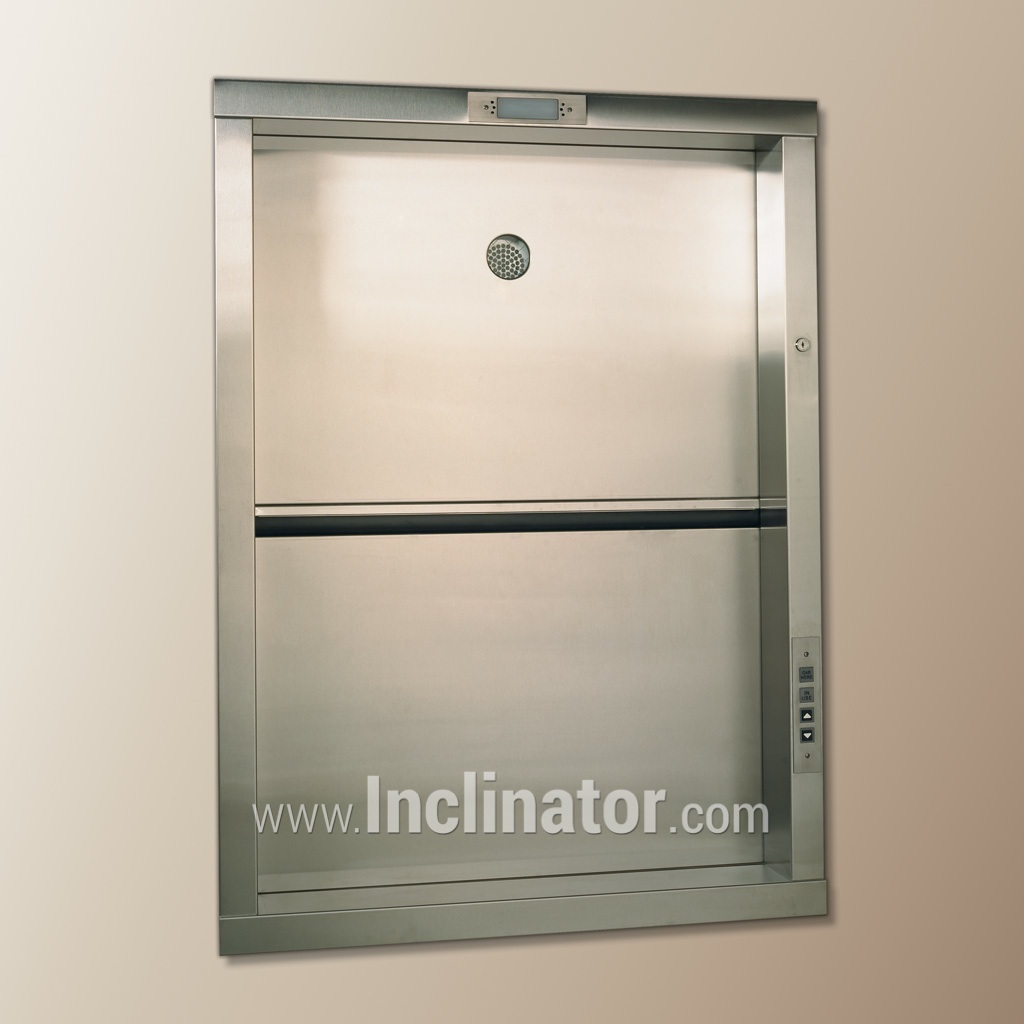

Hoistway Door

Machine Access Door
Hoistway Door: Bi-Parting, Slide-Up or Swing Door: Available in Stainless Steel and Primed Carbon Steel

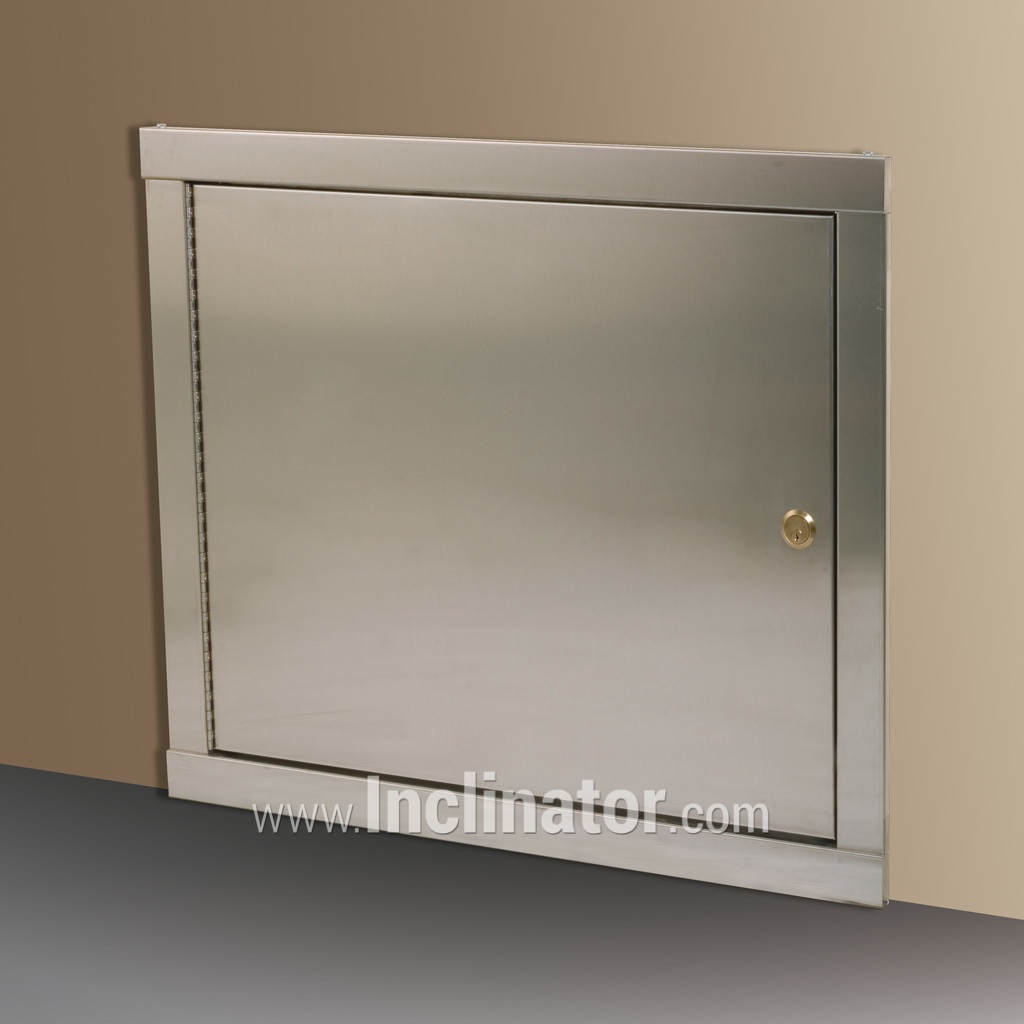

Machine Access Door: Available in Stainless Steel or Primed Carbon Steel

Gate Options

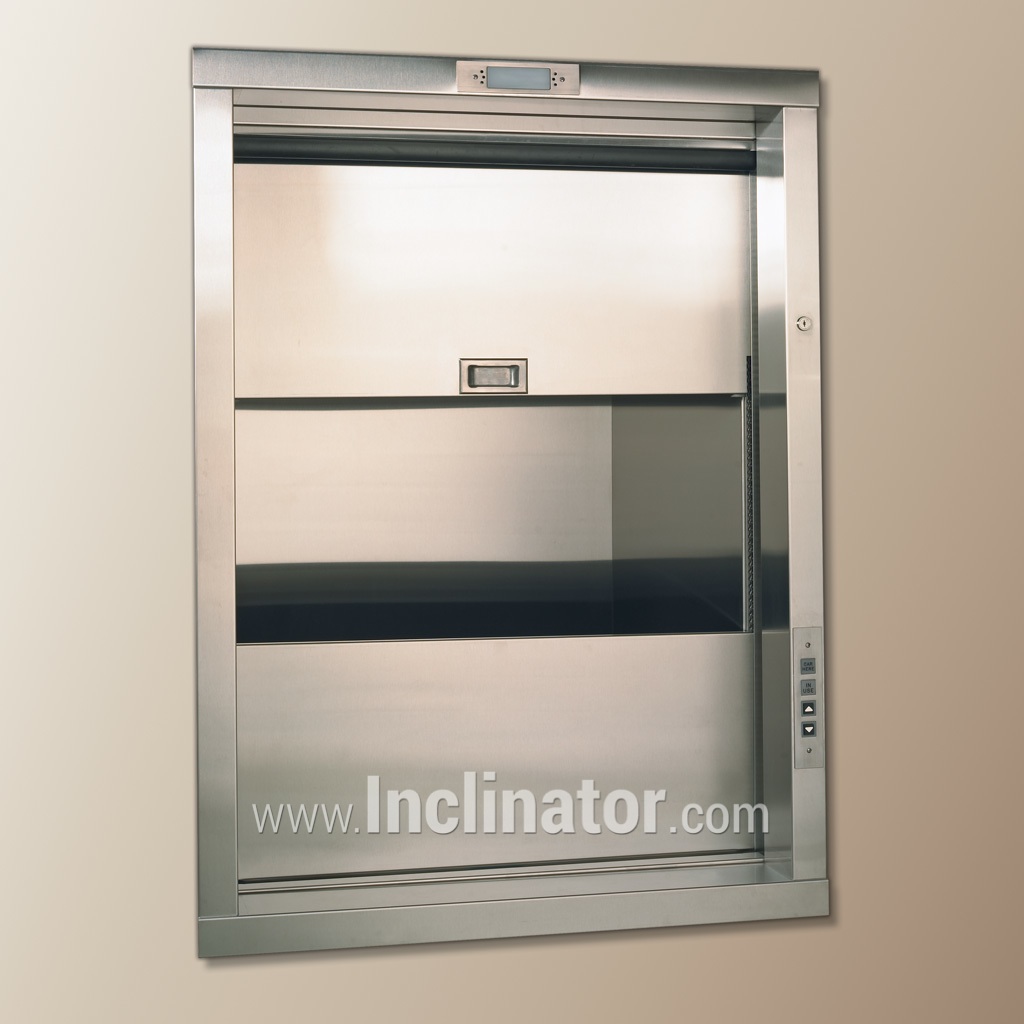

Bi-Parting Gate
Bi-Parting or Slide-Up Gate: Available in Stainless Steel and Primed Carbon Steel

Call Buttons

Call Buttons
Above control station only available with bi-parting and slide-up doors.

Safety Options

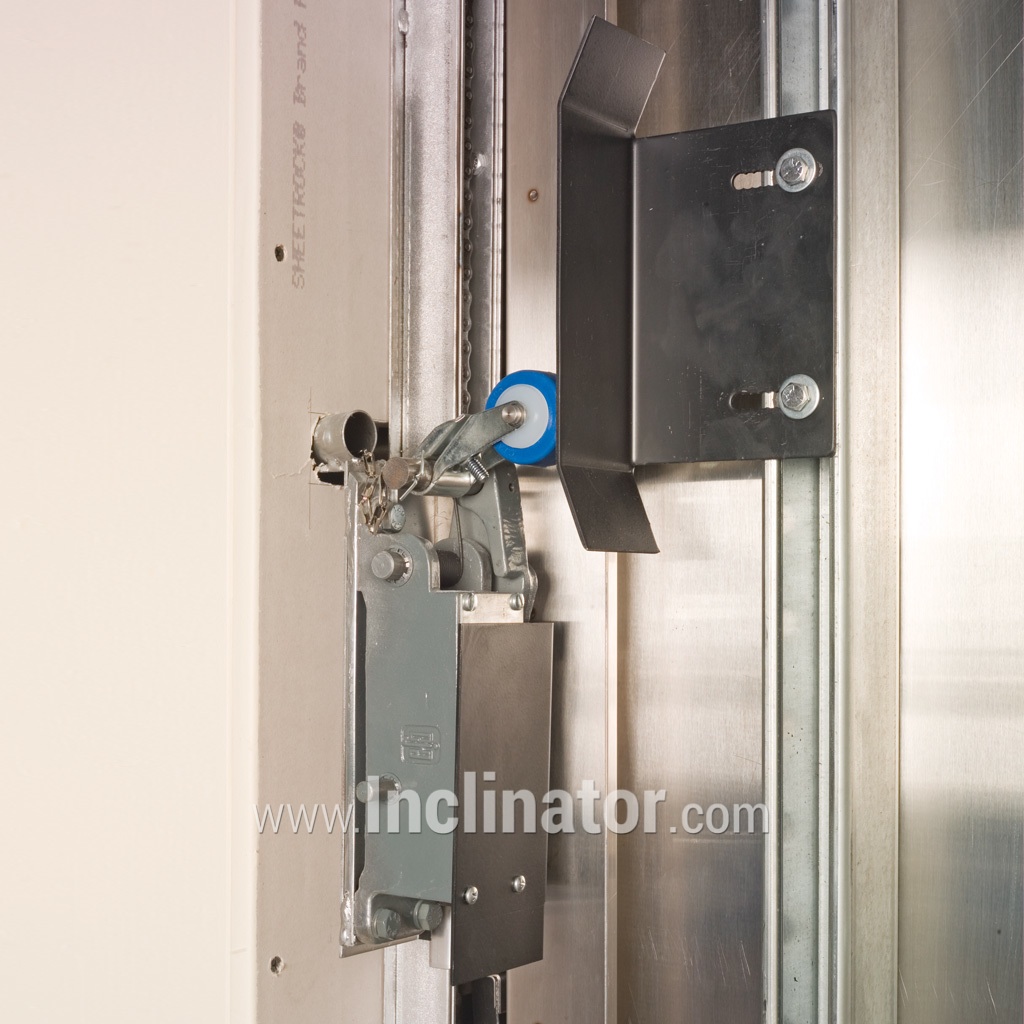

Door Safety Interlock

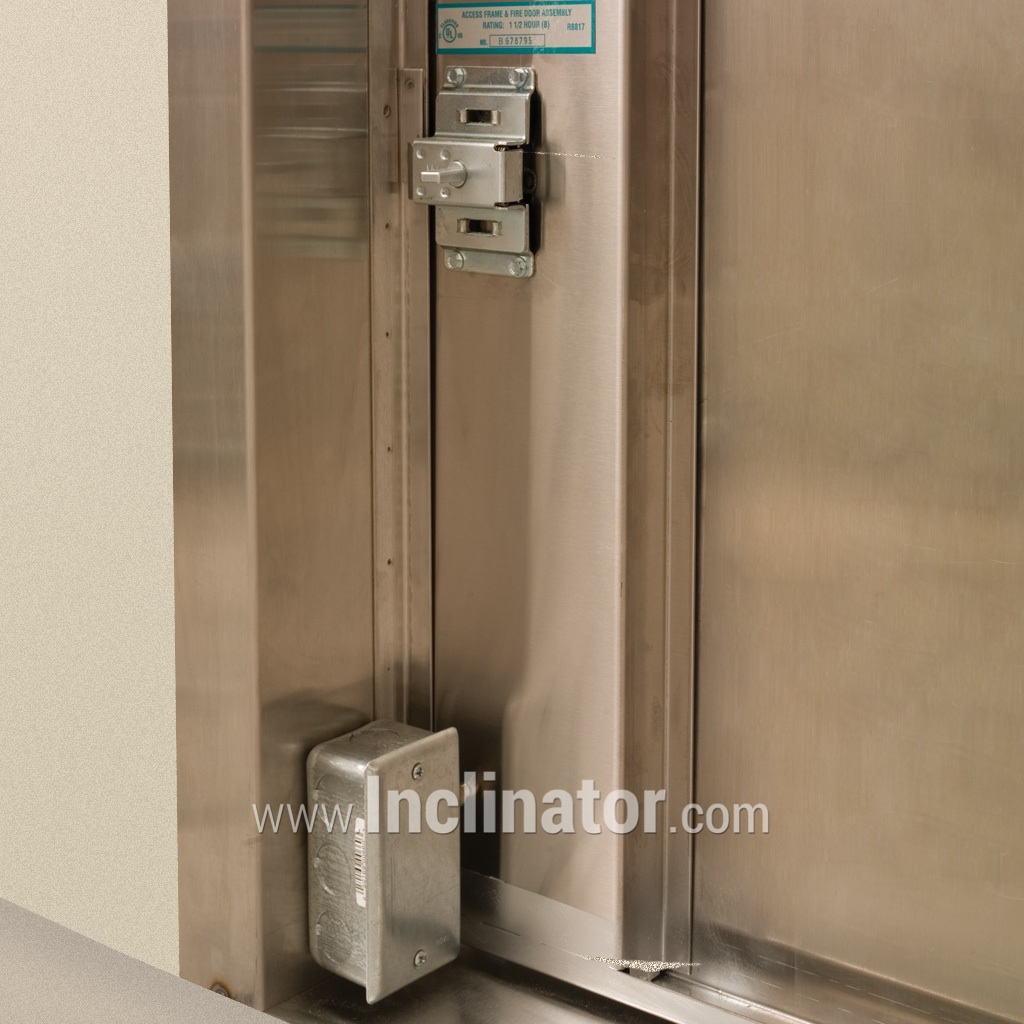

Access Door Interlock
Car cam and roller position shut-off switch meets all industry codes as a dumbwaiter door safety interlock.Key lock and door open shut-off switch meet all industry codes for a machine room access door interlock.



Meets or exceeds the requirements of ASME A17.1-2007 and CSA B44-07 safety codes for elevators and escalators. Consult your local building authorities for specific regulations on these products before purchasing. Specifications, material finishes and product options are subject to change without notice. Actual colors may vary slightly from shown on computer or print-out.
